Portable Conveyors

Model: Portable Conveyor

  1. Home
  2. Portable Conveyor
  3. Portable Conveyors
Portable Conveyors






  • Capacity: 2-3 Ton
  • Hopper: 304 Stainless Steel
  • Frame: Mild Steel
  • Length: 24 ft. - 60 ft.
Product Details Request a Quote

Specifications

  • 10-15 HP TEFC Engine
  • 120# PVC Belting
  • 3 Roller Idlers on 4ft. Spacing
  • Mild Steel Square Tubing Undercarriage
  • Stainless Steel Cable Lift and Winch
  • 11L-15 Tires
  • Tow Hitch
  • Stainless Steel Rain Covers

Available Options

  • 240/480 volt start stop box
  • 90 degree Swivel Axle
  • Funnel Hood (Stainless Steel)
  • Gas Power / Hydraulic Drive Engine
  • 18" Brush Kit
  • Stainless Steel Under-frame

Product Detail

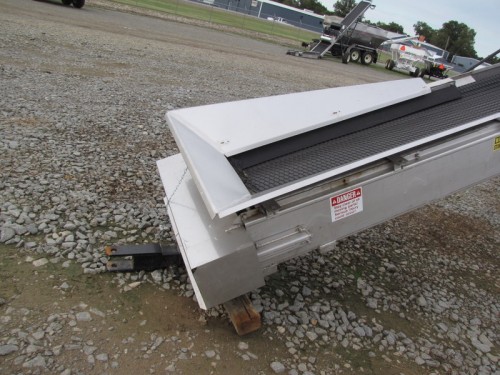

Portable Conveyors from 24' to 60'. Made from 304 Stainless Steel , TOP drives for up to 40' and CENTER drive for 42'-60' Material- 120# pvc belting, 3-roller troughing idlers on 4' spacing, M/S square tubing frame under carriage (Powder Coated) with Stainless Steel cable lift & winch, 11L - 15 tires & wheels, 10-15 hp TEFC motor (depends on length), tow hitch, unload rate approximately 2-3 tons/min.
